Lidar
of the Castleshaw Valley and environs

Data from the Environment Agency National Lidar Program
(Digital Terrain Model data, buildings/trees removed)

Castleshaw Lidar

Many of the following Lidar images are large (up to 27MB), especially the 5km x 5km ones
and open in their own windows from where they can be downloaded/zoomed/saved.


3D Lidar Overview

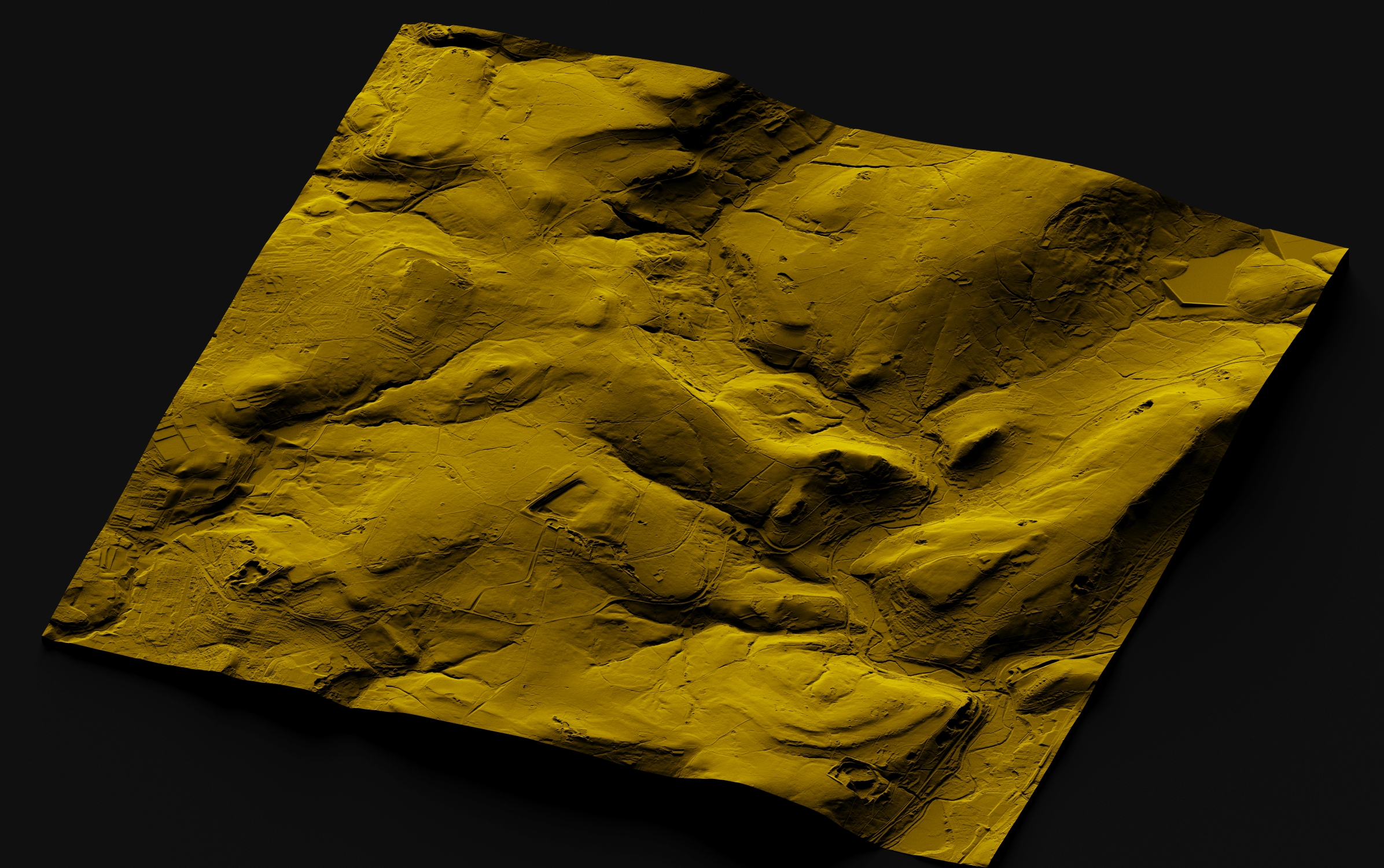

3D Lidar Model of the 5km x 5km map below.

The Roman Road can be seen emerging from Austerlands (lower left, you will need to zoom in) and traversing the landscape to Castleshaw (Top right)

The quarry at High Moor is prominent in the centre, with Knott hill to its right directly above Delph village.
The Castleshaw valley runs from Delph towards the top right (and the Castleshaw reservoirs).

Click the image above to examine in detail.

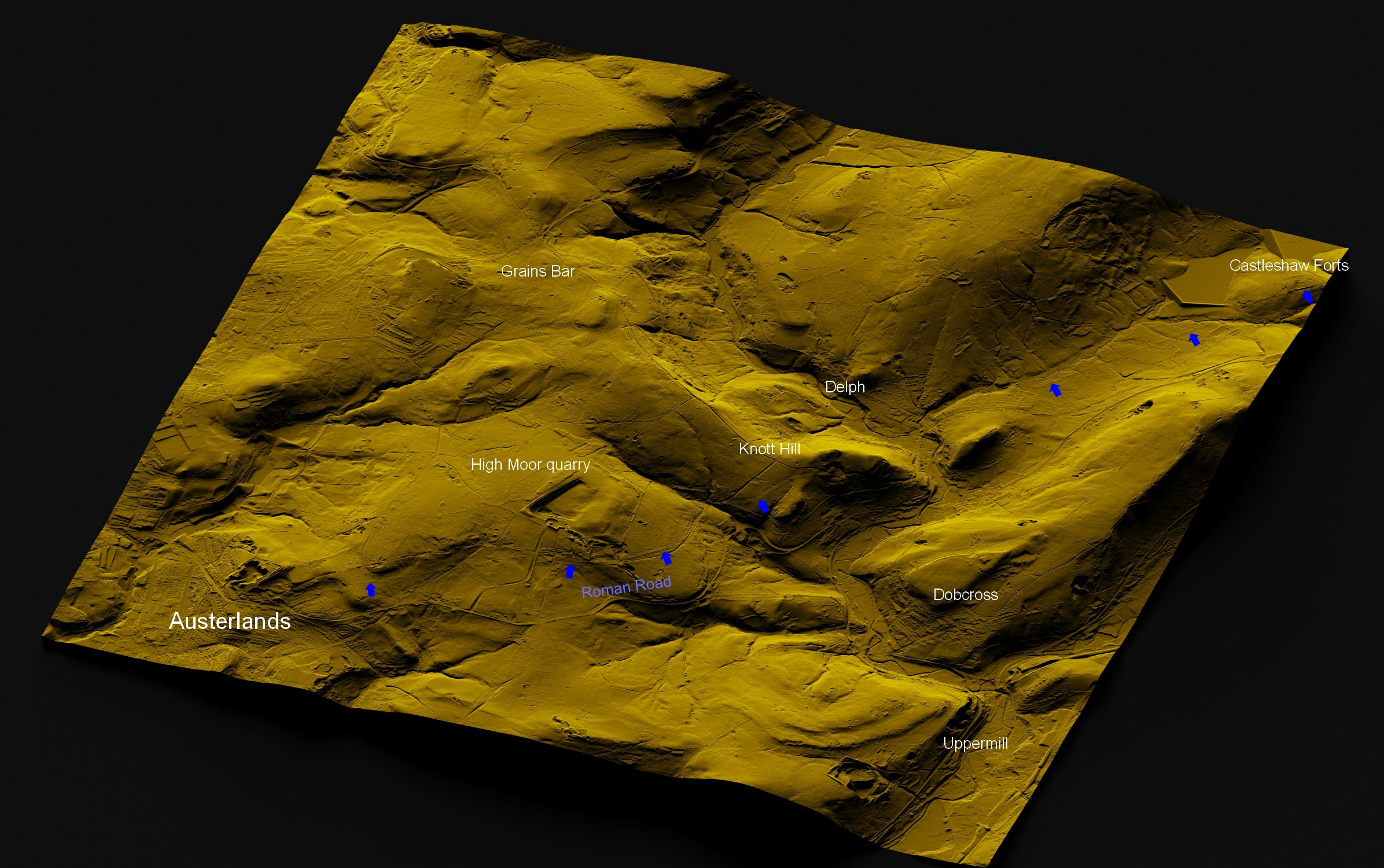

Click here for an annotated image showing the road.

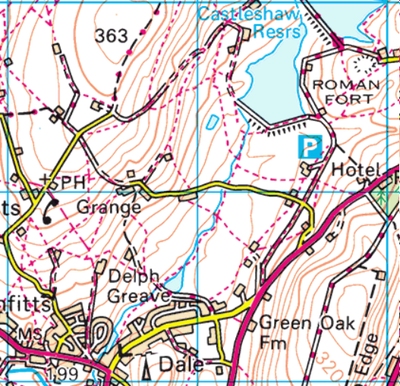

  2km x 2km square
OS: SD9808 to SD9909
Castleshaw
(5mb max - High resolution)

Lidar Visualisation:

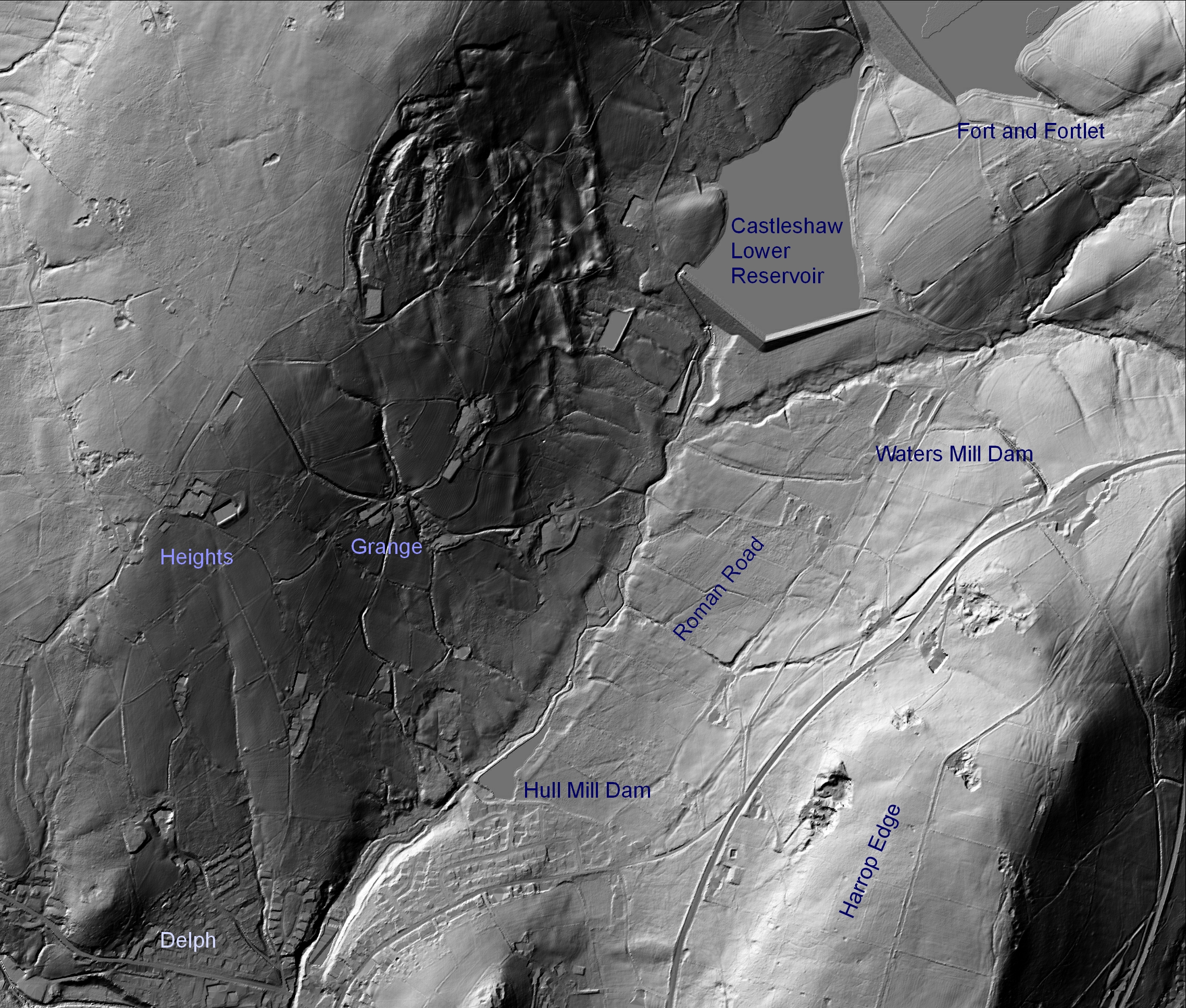

   Hill Shade with annotation (simplest view, with locations)
   Hill Shade (simplest view, no annotation)

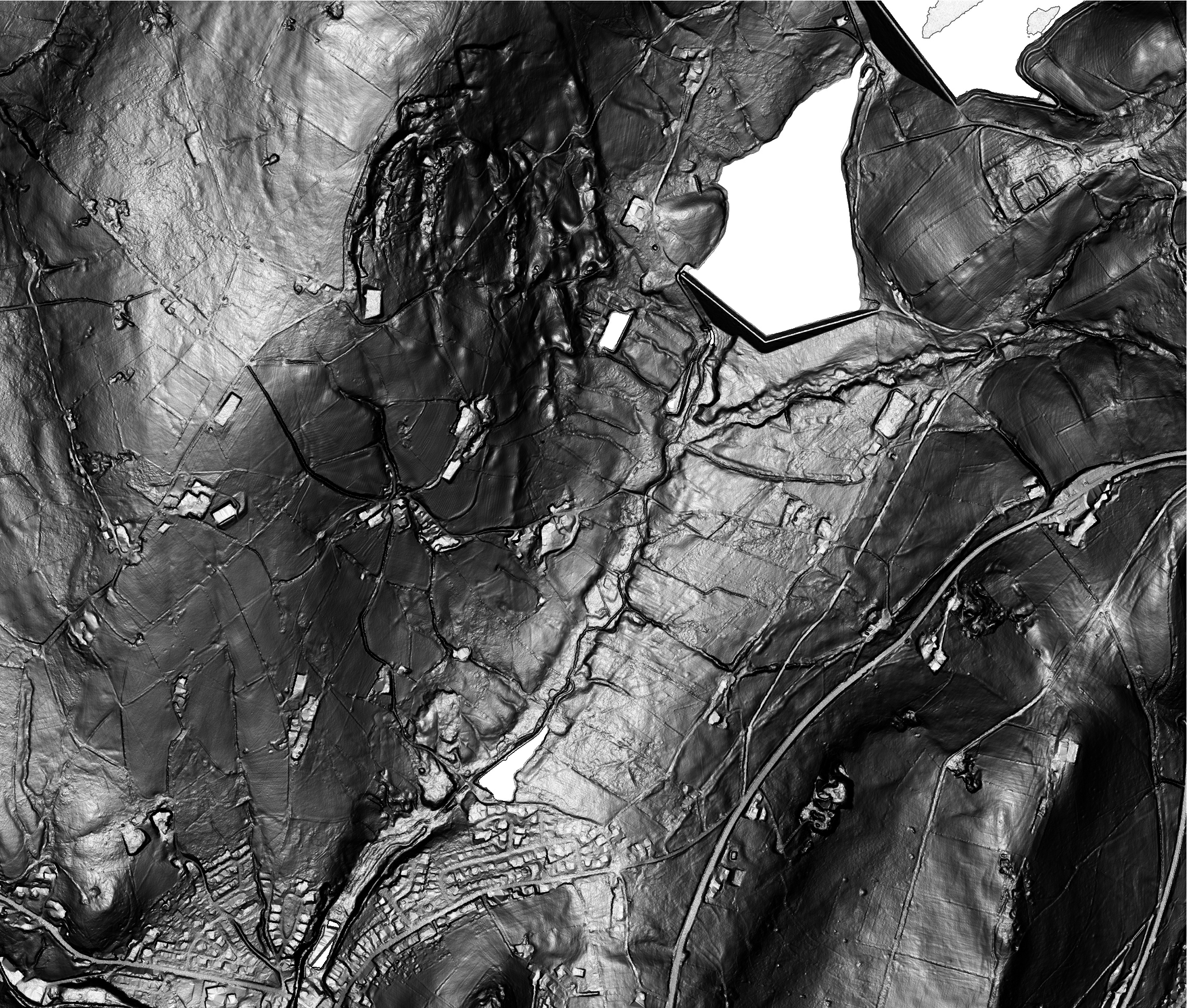

   Slope (Best 3D vertical view)

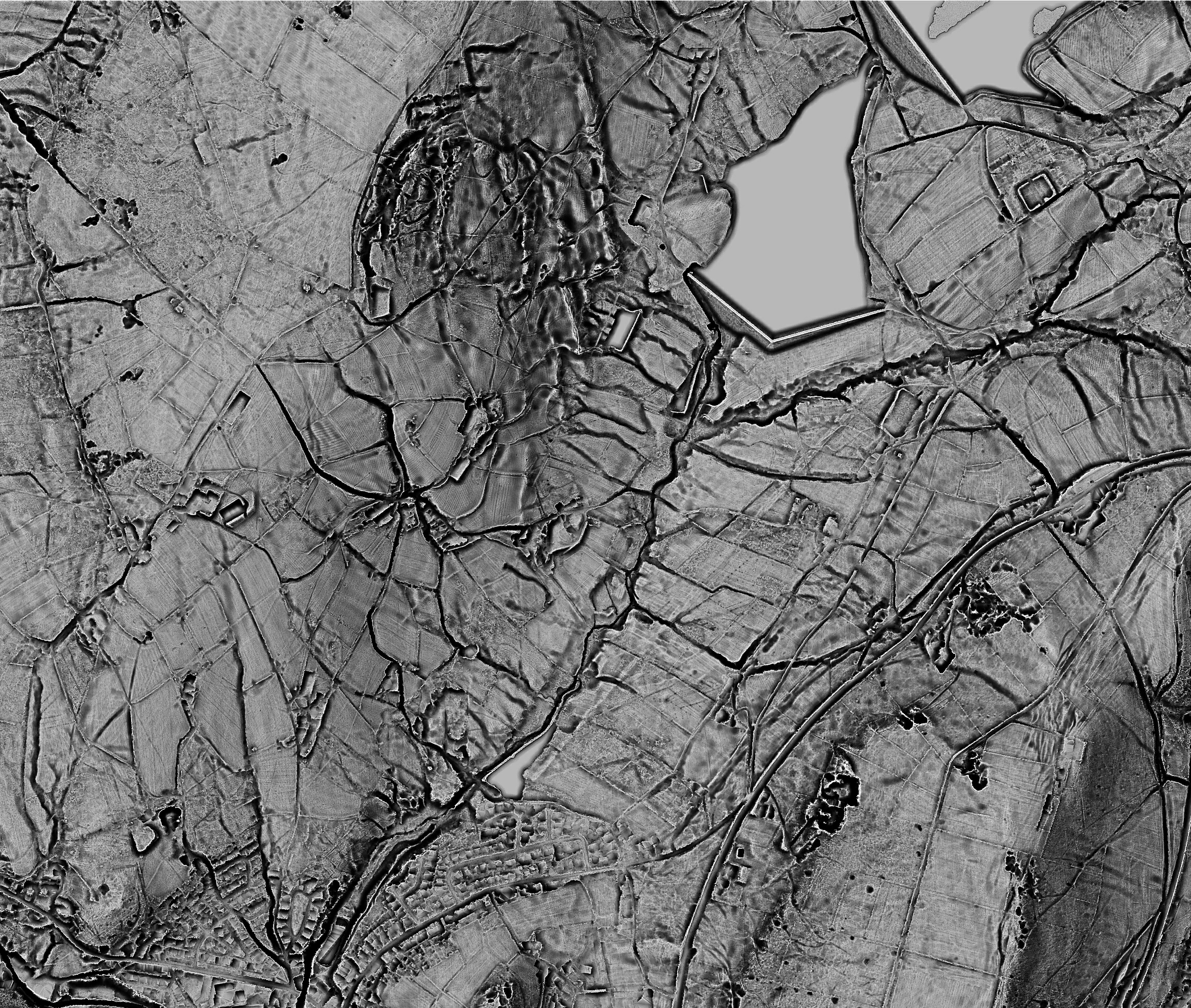

   Open Positive (best archaeo')

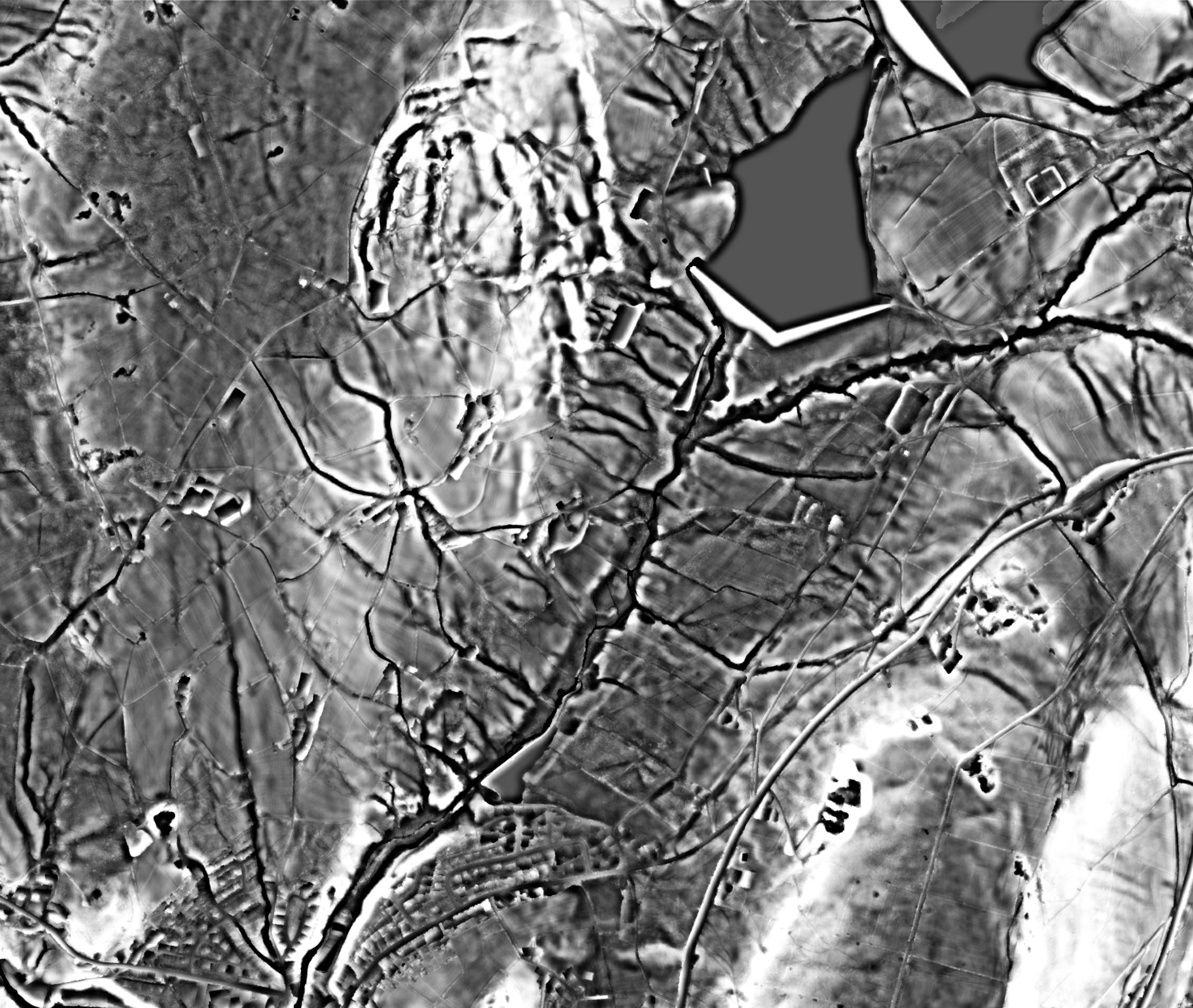

   Local Domination (other features)

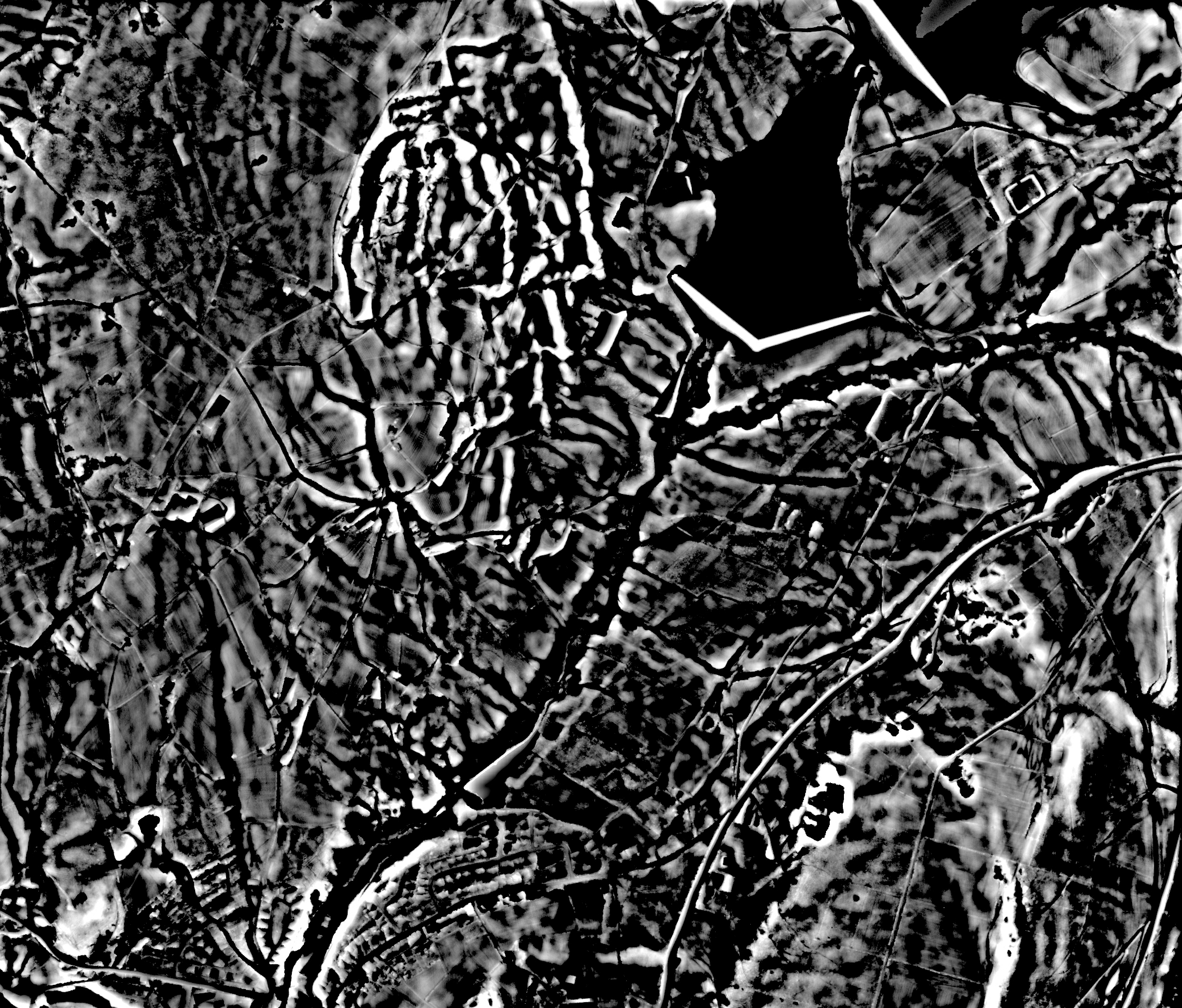

   Simple Local Relief Model

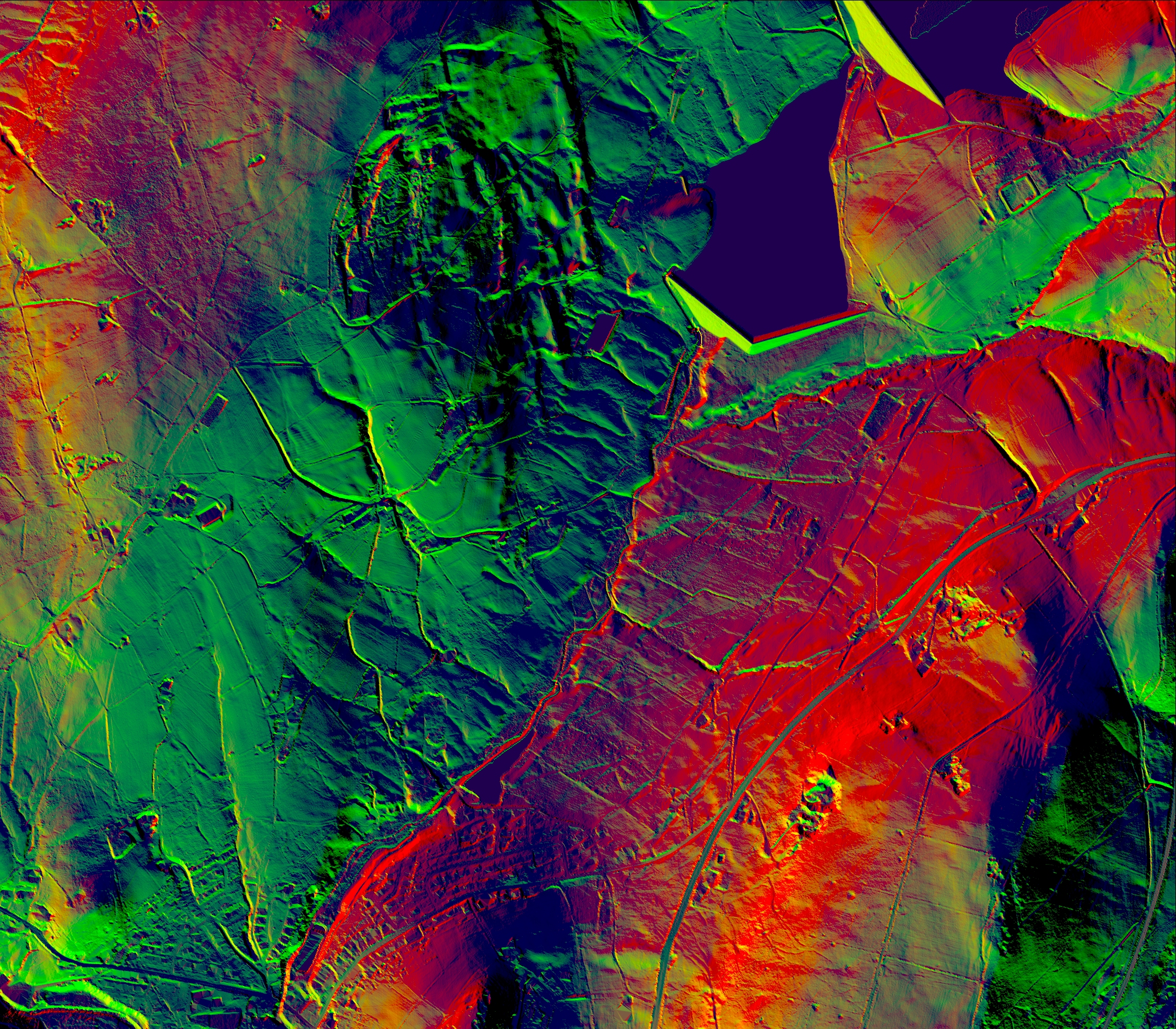

   Principle Component
       Analysis (Hillshade)




Try clicking a few of the links above
 (Each will open in a new window) then switch between the images to compare.

In all the images the Roman road running from the triangular dam near Delph Greave (Hull Mill dam) towards the Roman forts can be clearly seen.

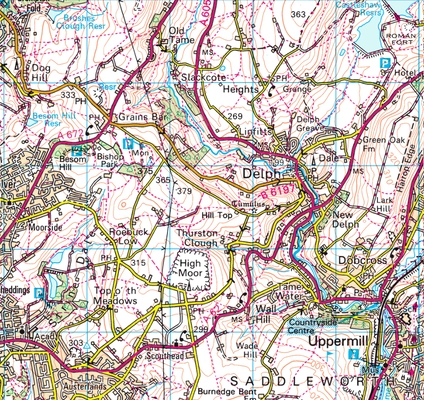

  5km x 5km square
OS: SD9505 to SD9909
Delph
(27mb max - High resolution)

Lidar Visualisation:

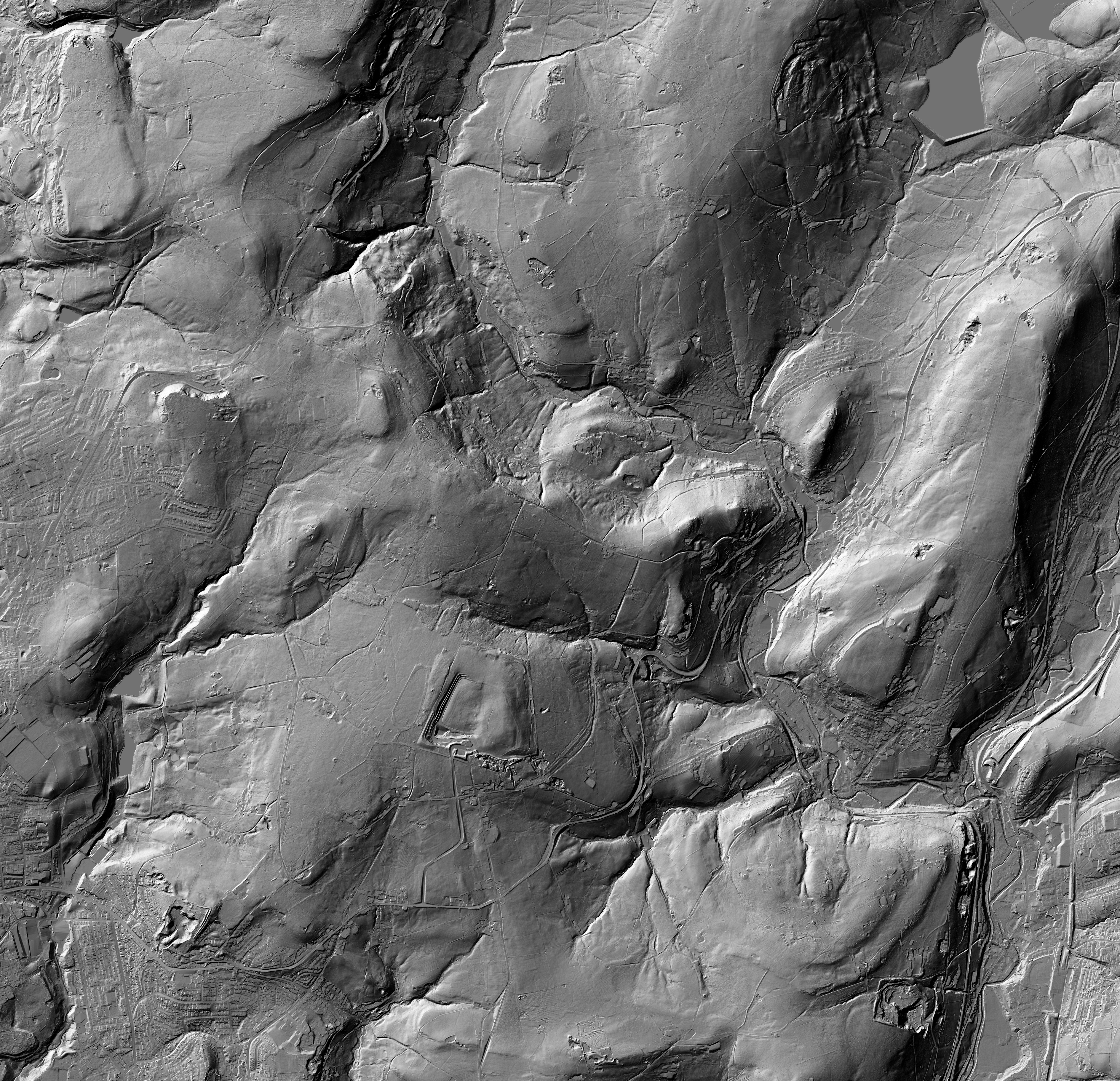

   Hill Shade
   Slope

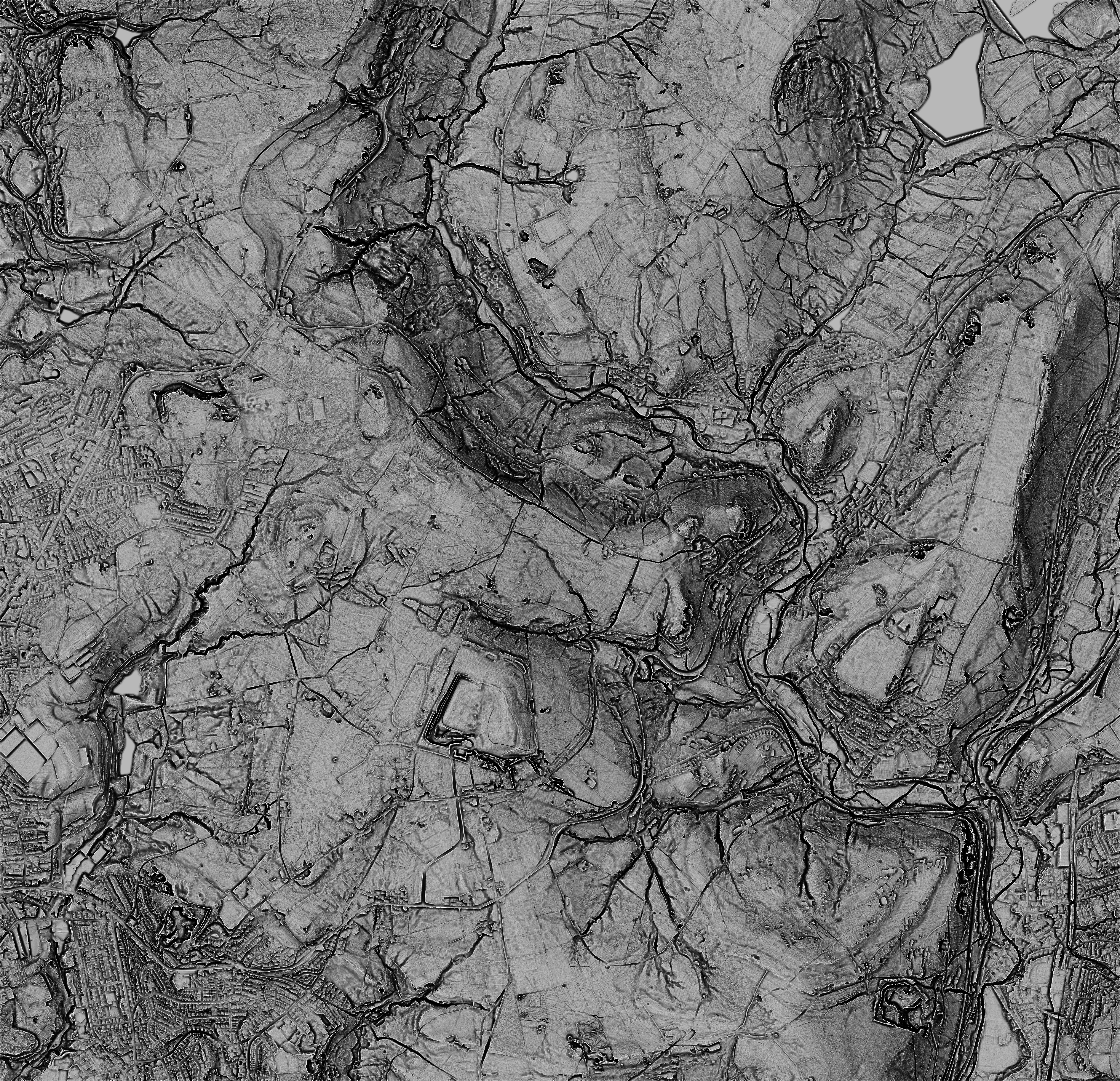

   Open Positive

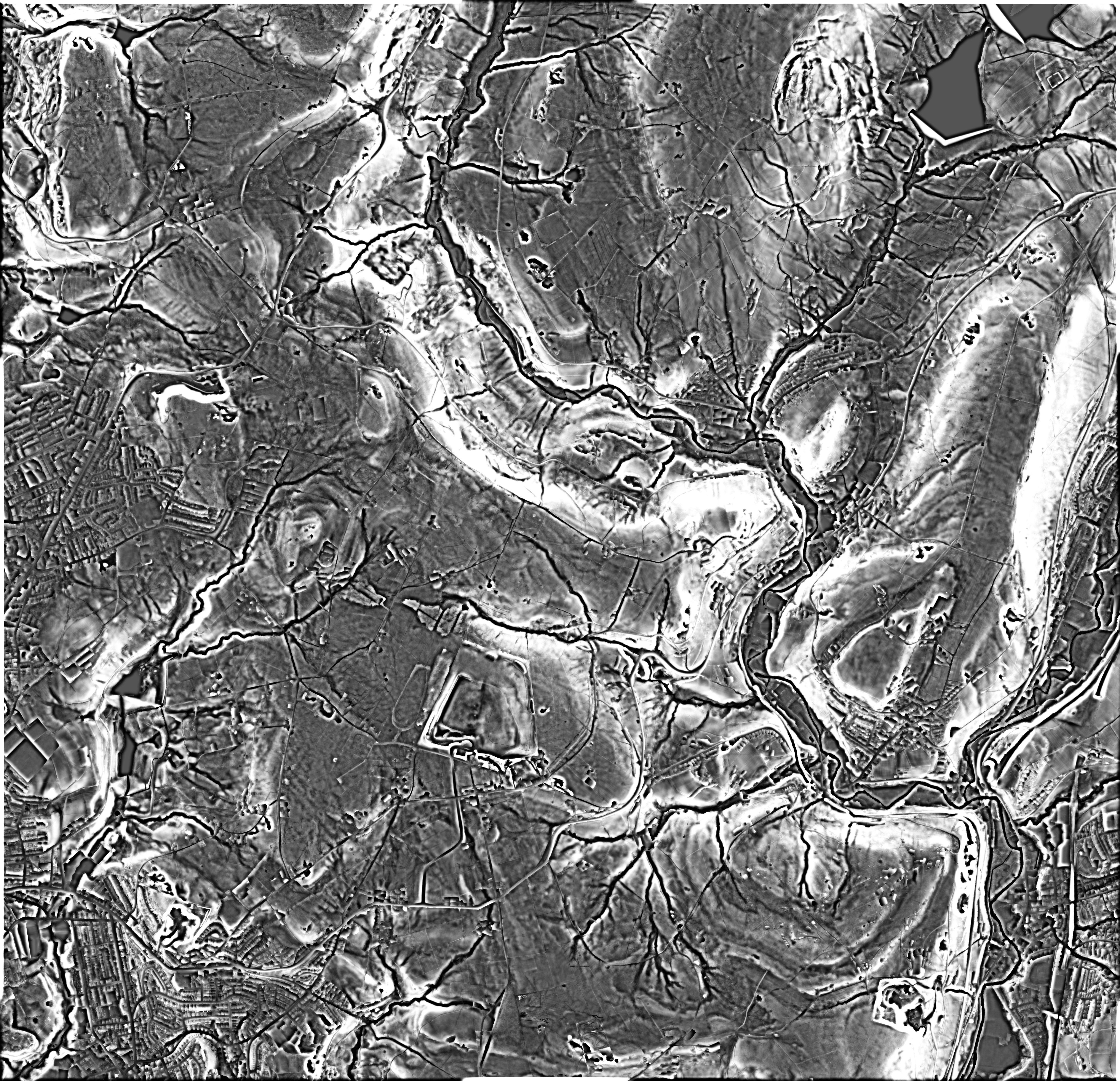

   Local Domination

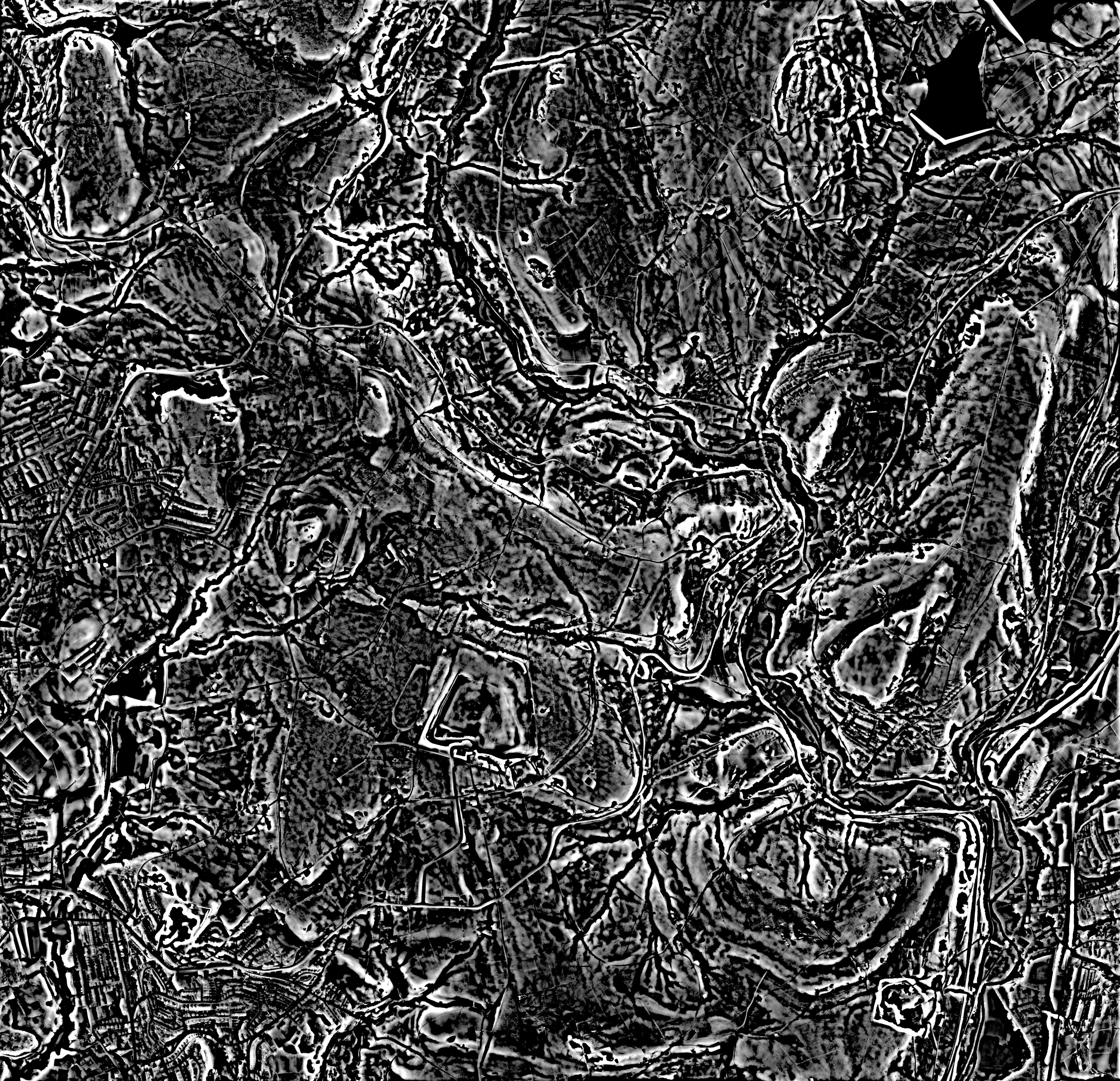

   Simple Local Relief Model

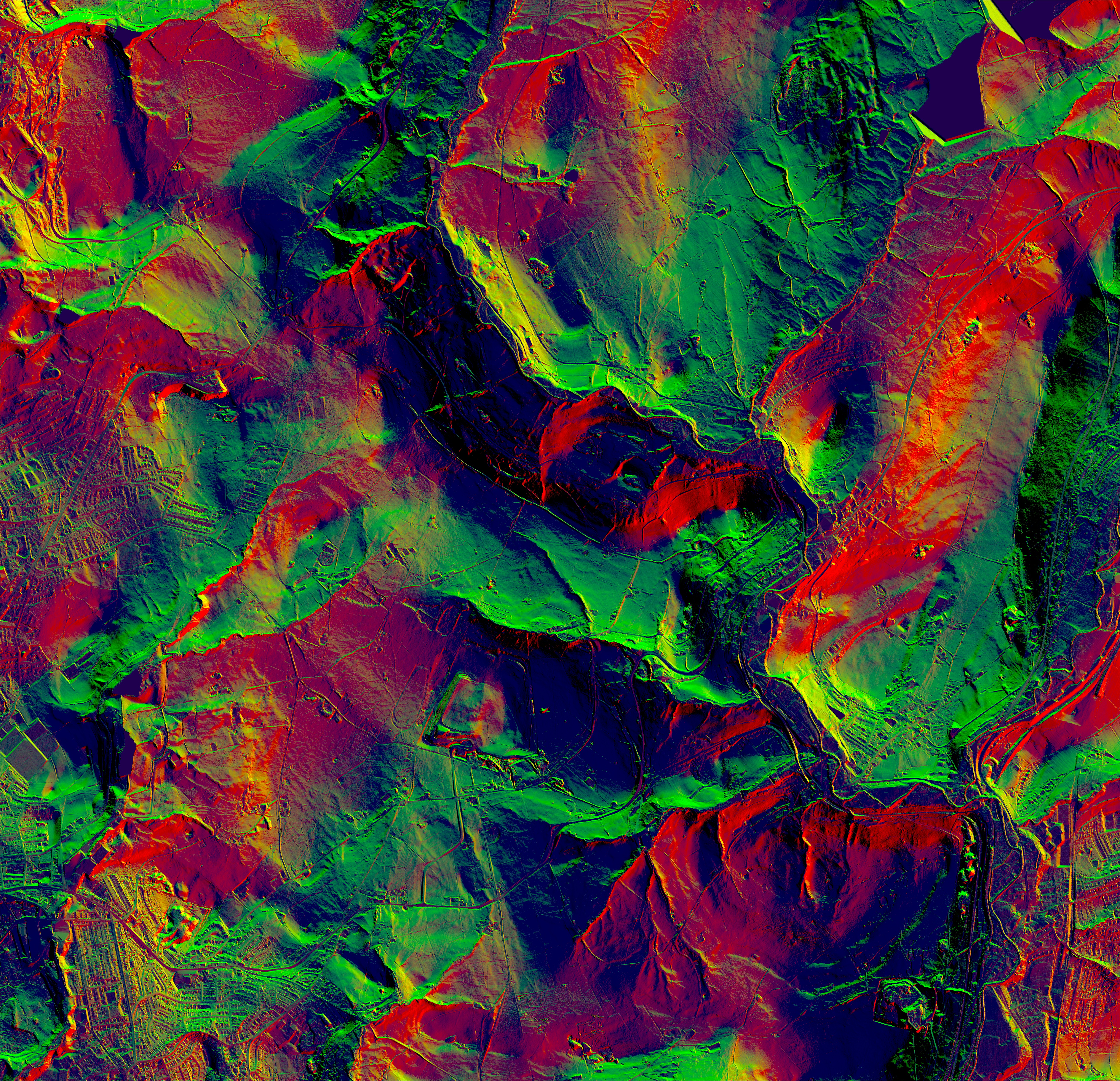

   Principle Component
       Analysis (Hillshade)


5km x 5km square
OS: SD9510 to SD9914

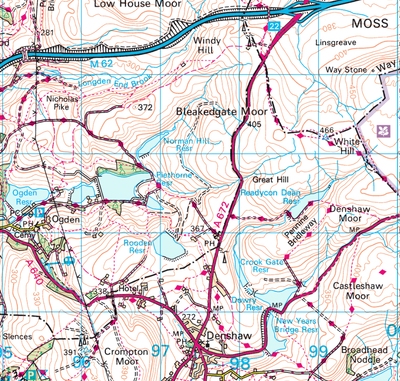

Denshaw & Piethorne Valley
(8mb max - High resolution)

Lidar Visualisation:

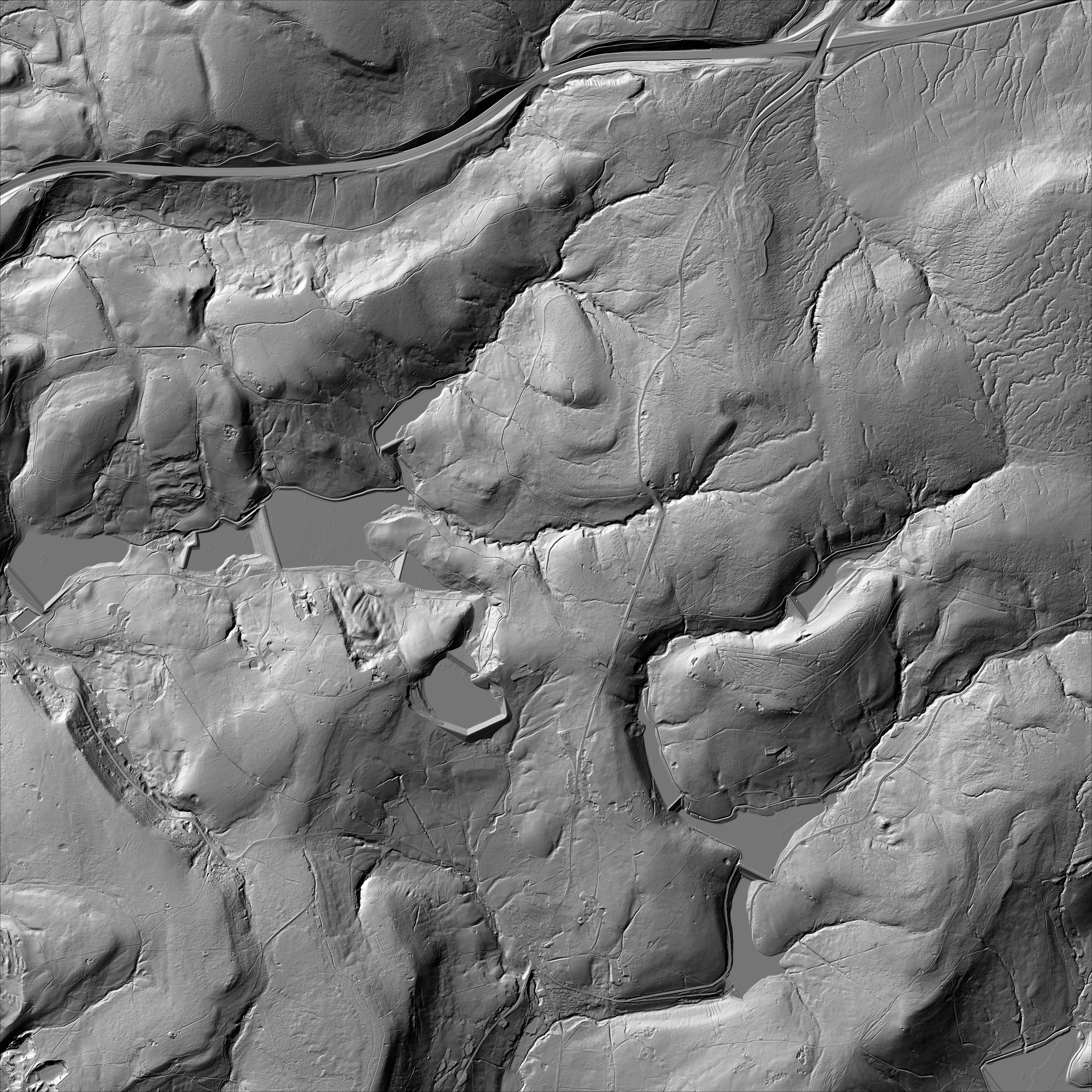

    Hill Shade

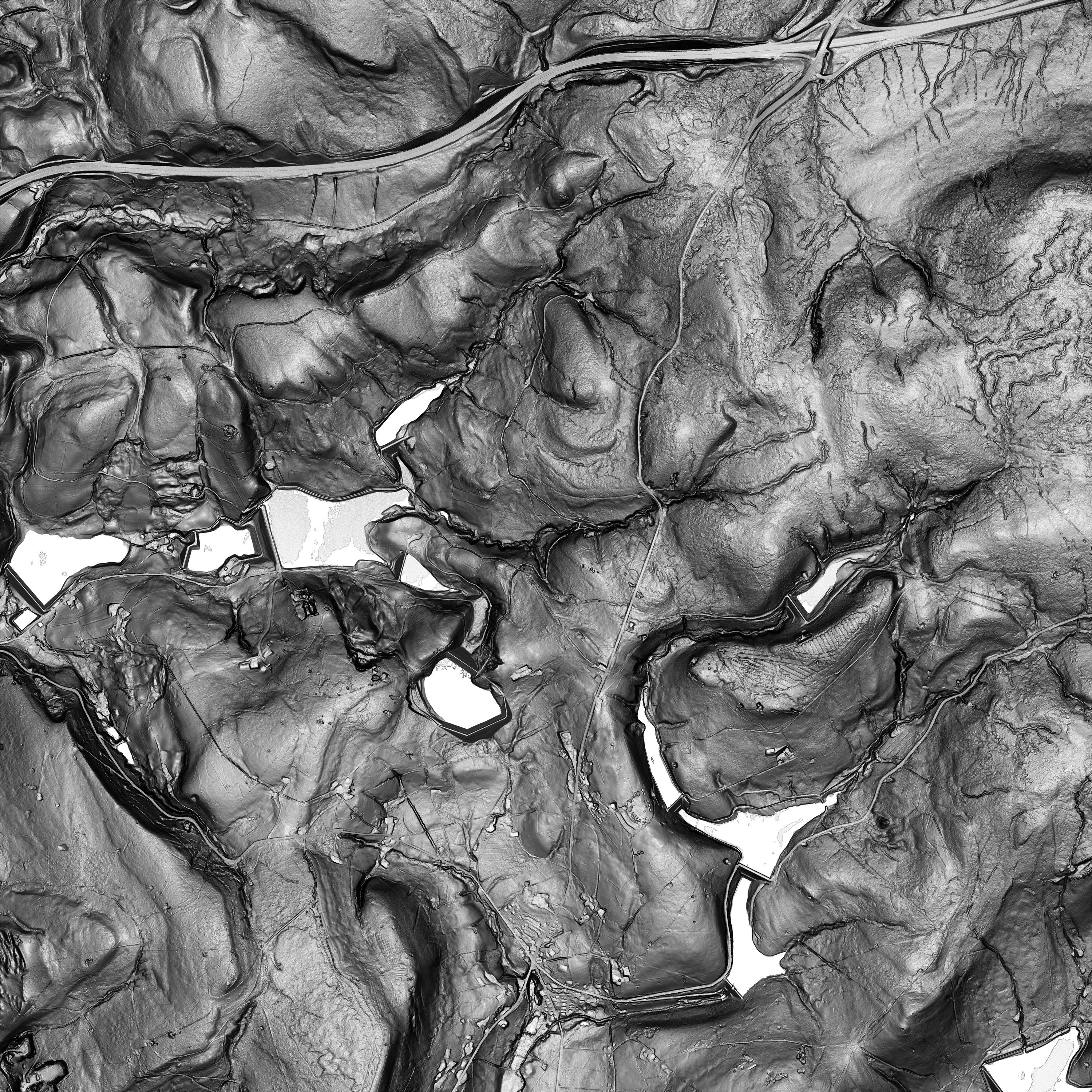

    Slope

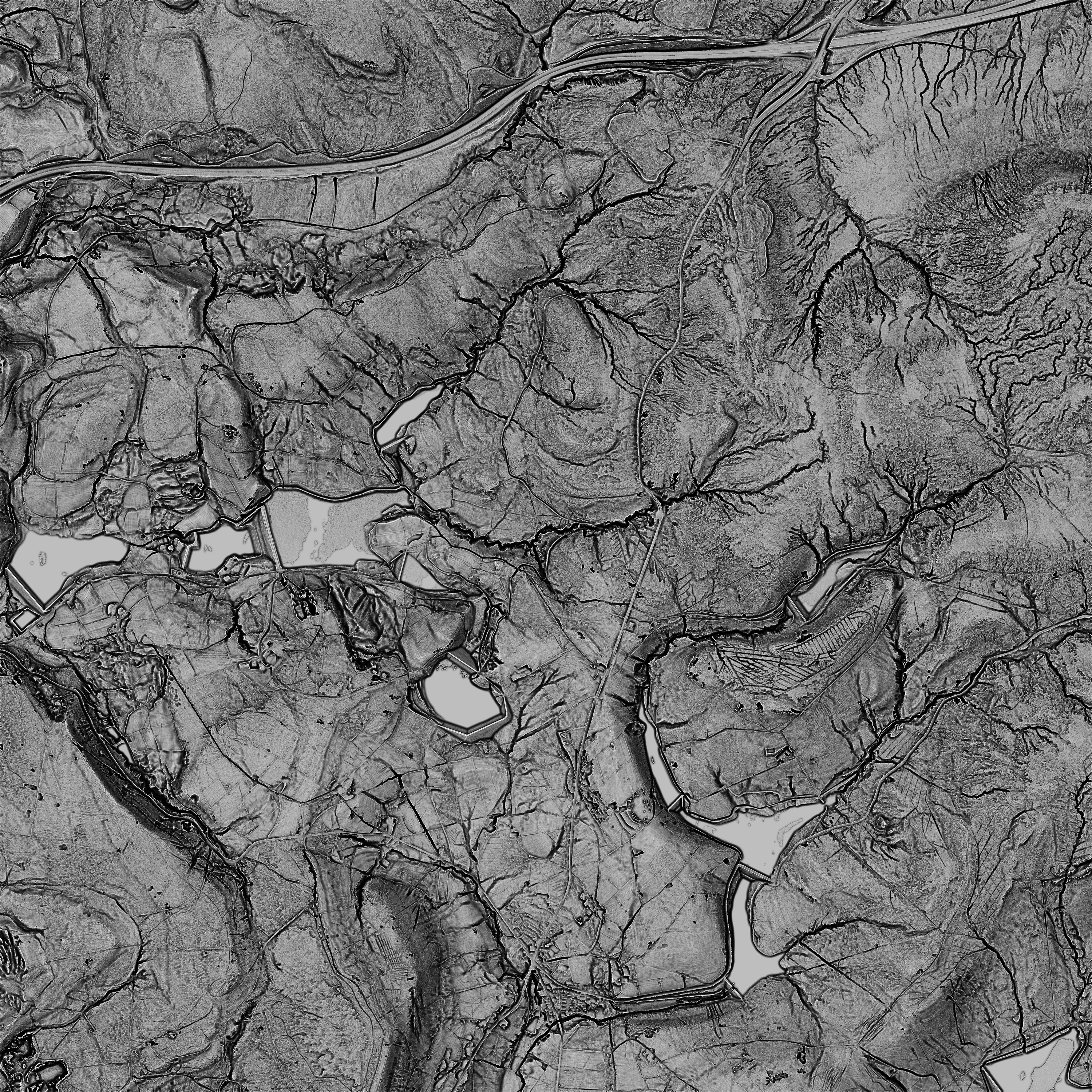

    Open Positive

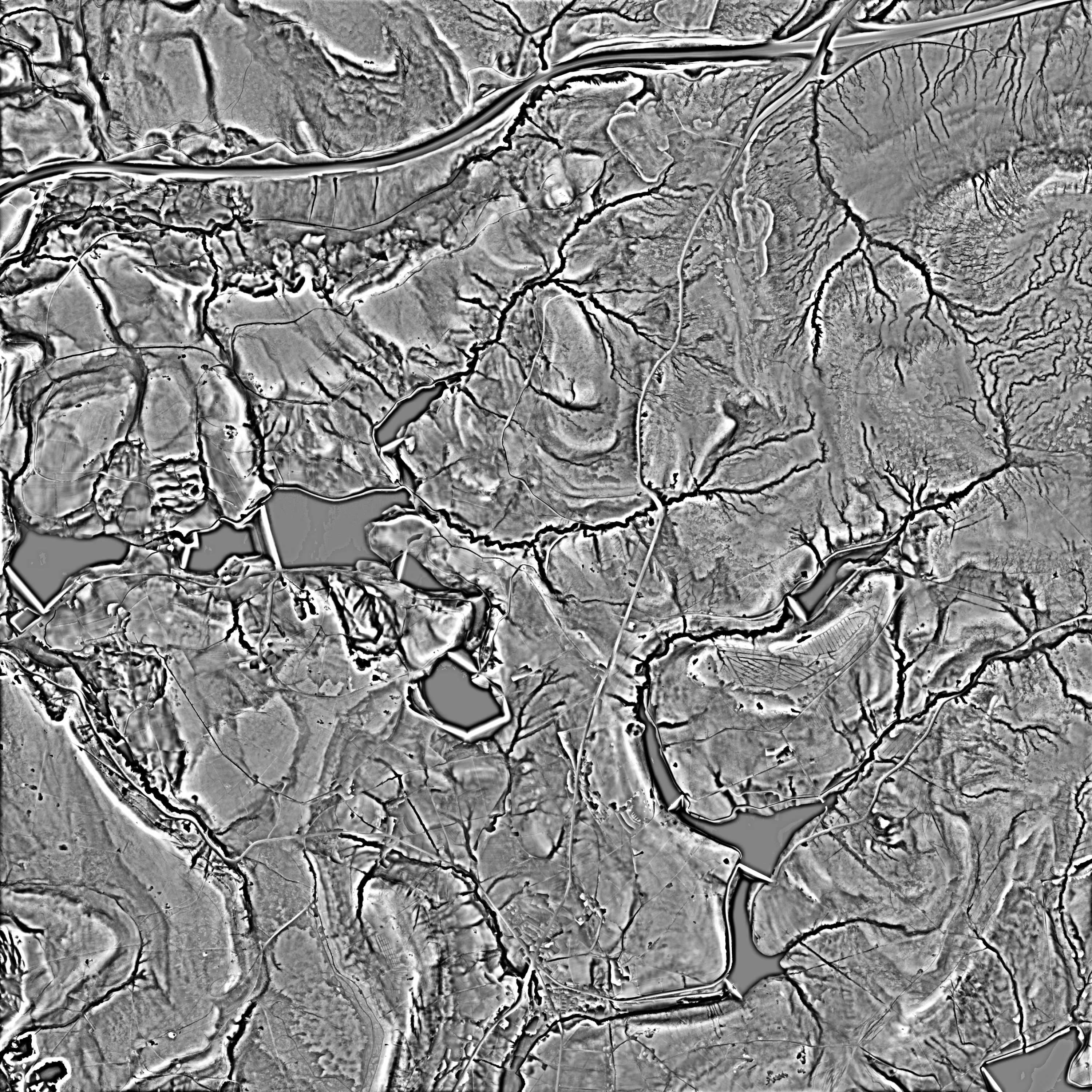

    Simple Local Relief Model


Click the images for a full screen view

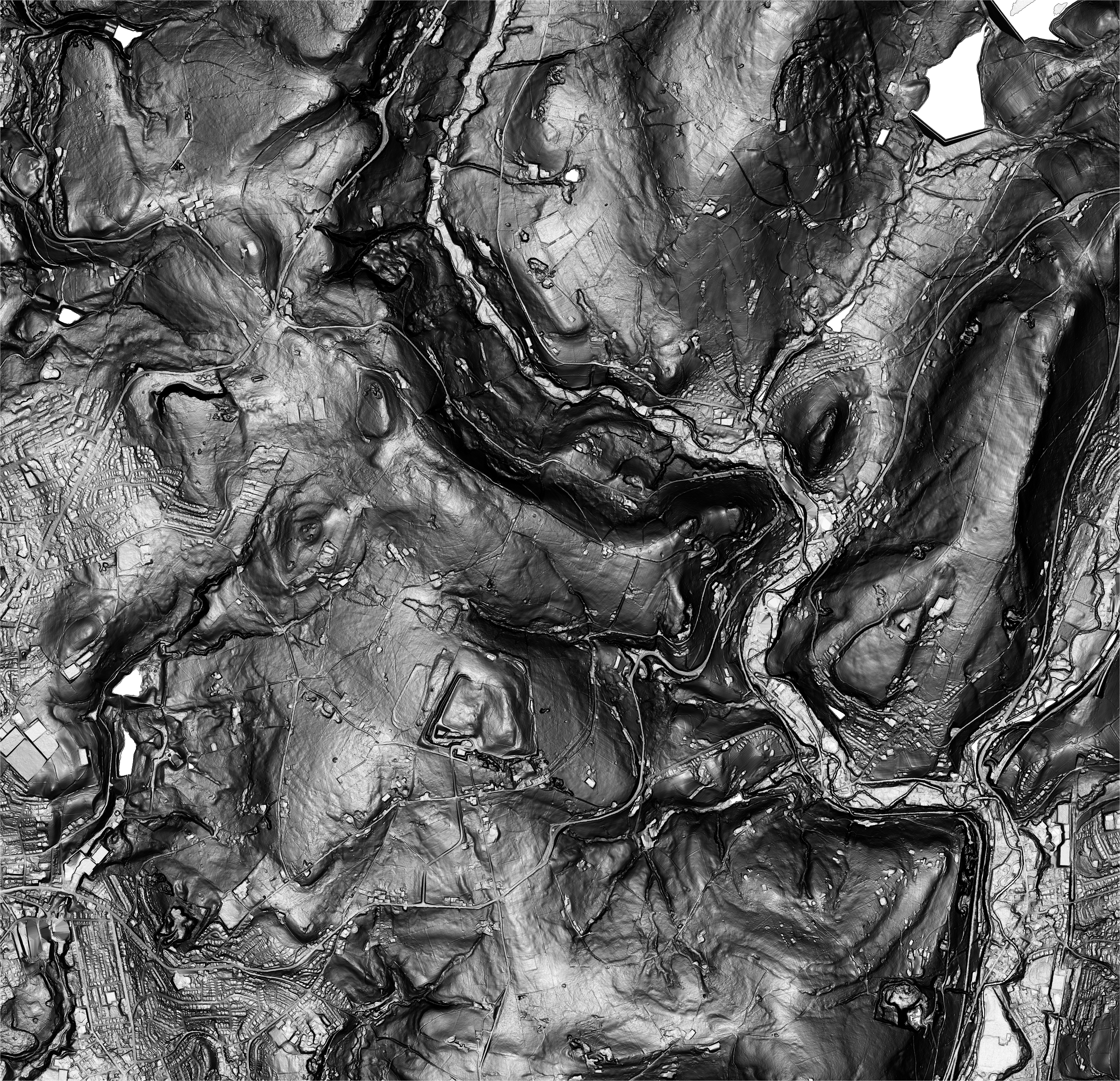

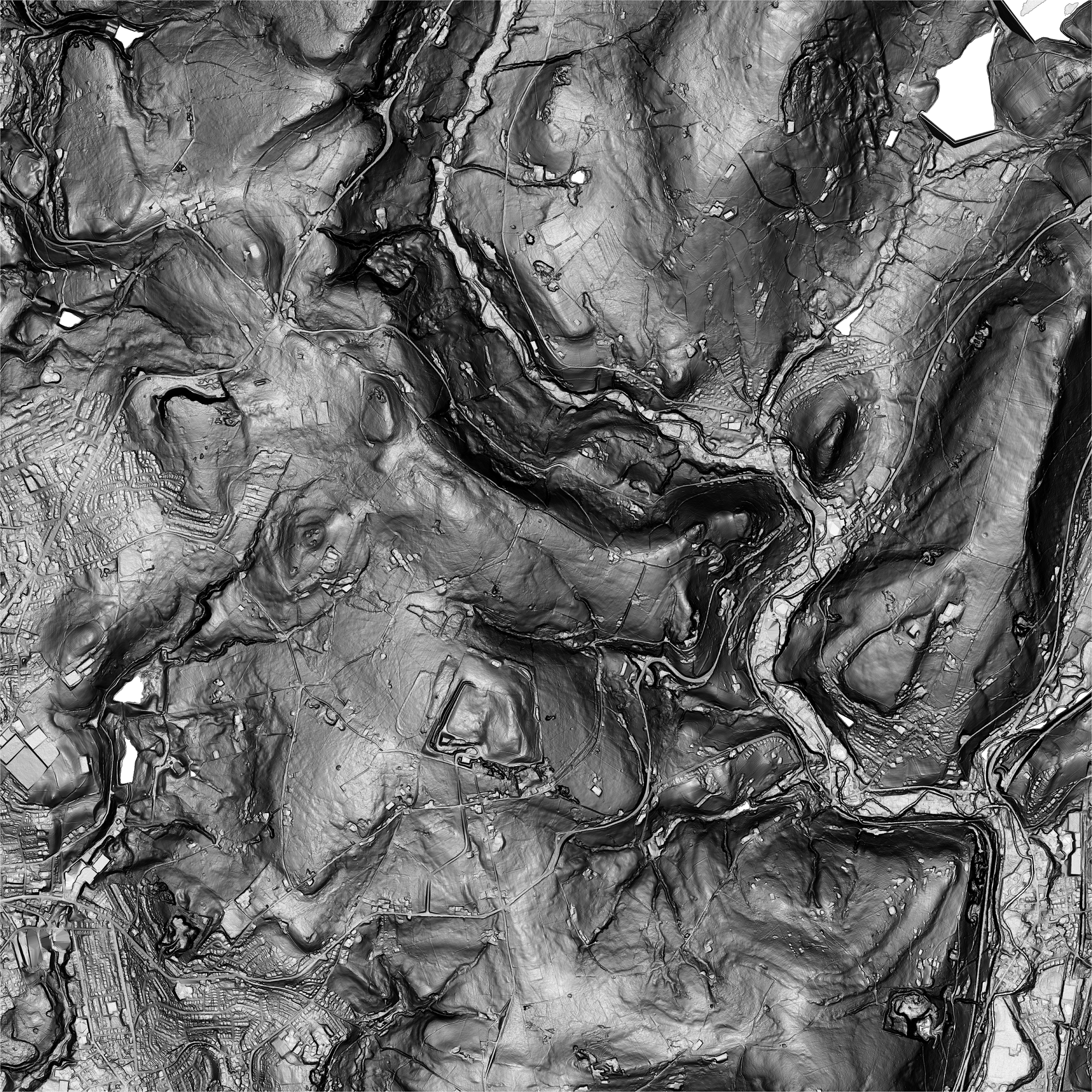

Lidar - Slope Visualisation: Delph/Castleshaw (5km x 5km square)
Low Resolution





3D Lidar Model Images.
Click the images for a full screen view

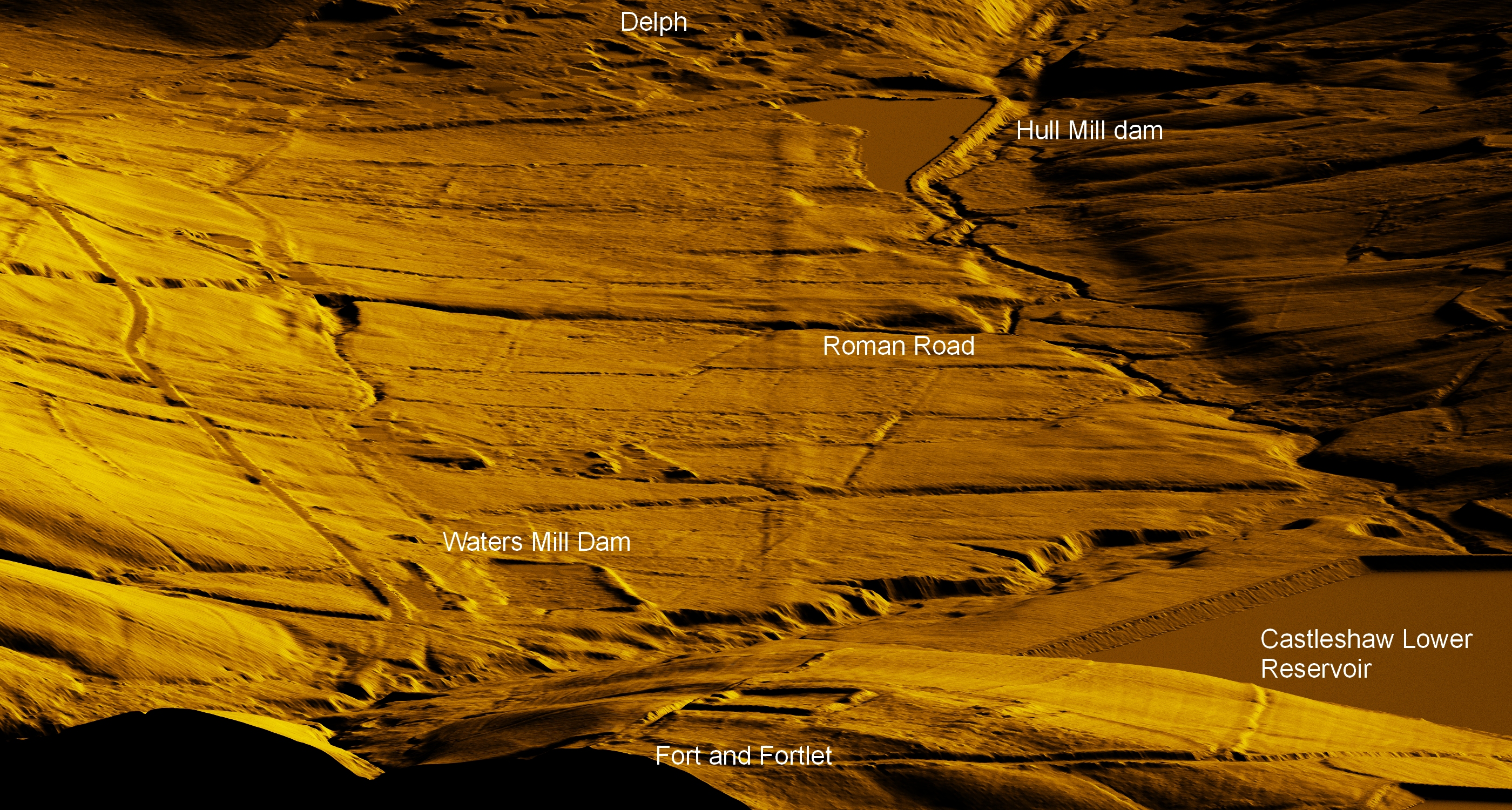

3D Lidar view along the Roman Road towards Delph (Hull Mill dam) from the Forts.
This is a 'telescope' view from the forts , the image is very foreshortened making Hull Mill dam appear much closer to the forts than it really is.
The visible Roman Road in the image is 1.1 miles in length.

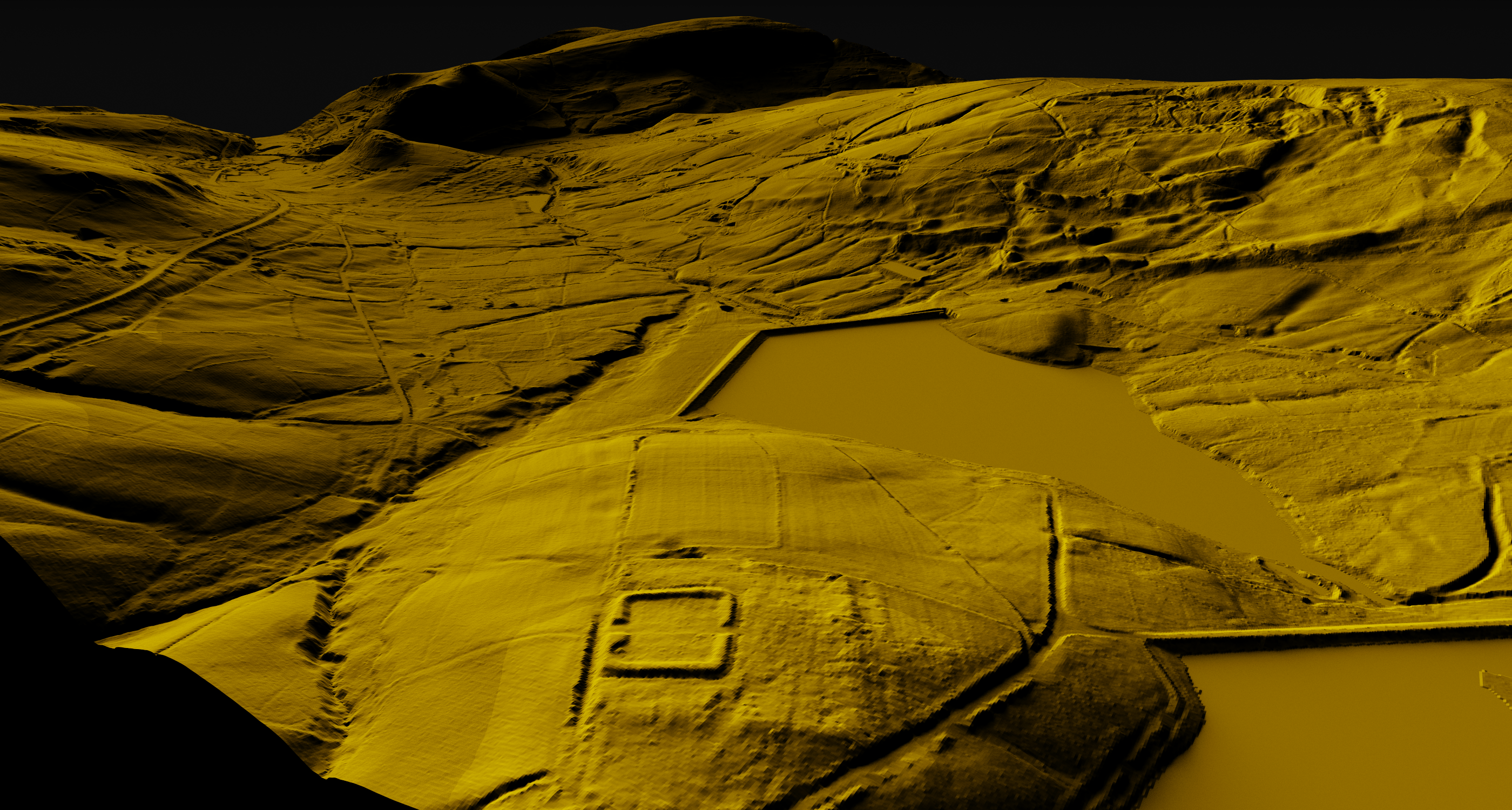

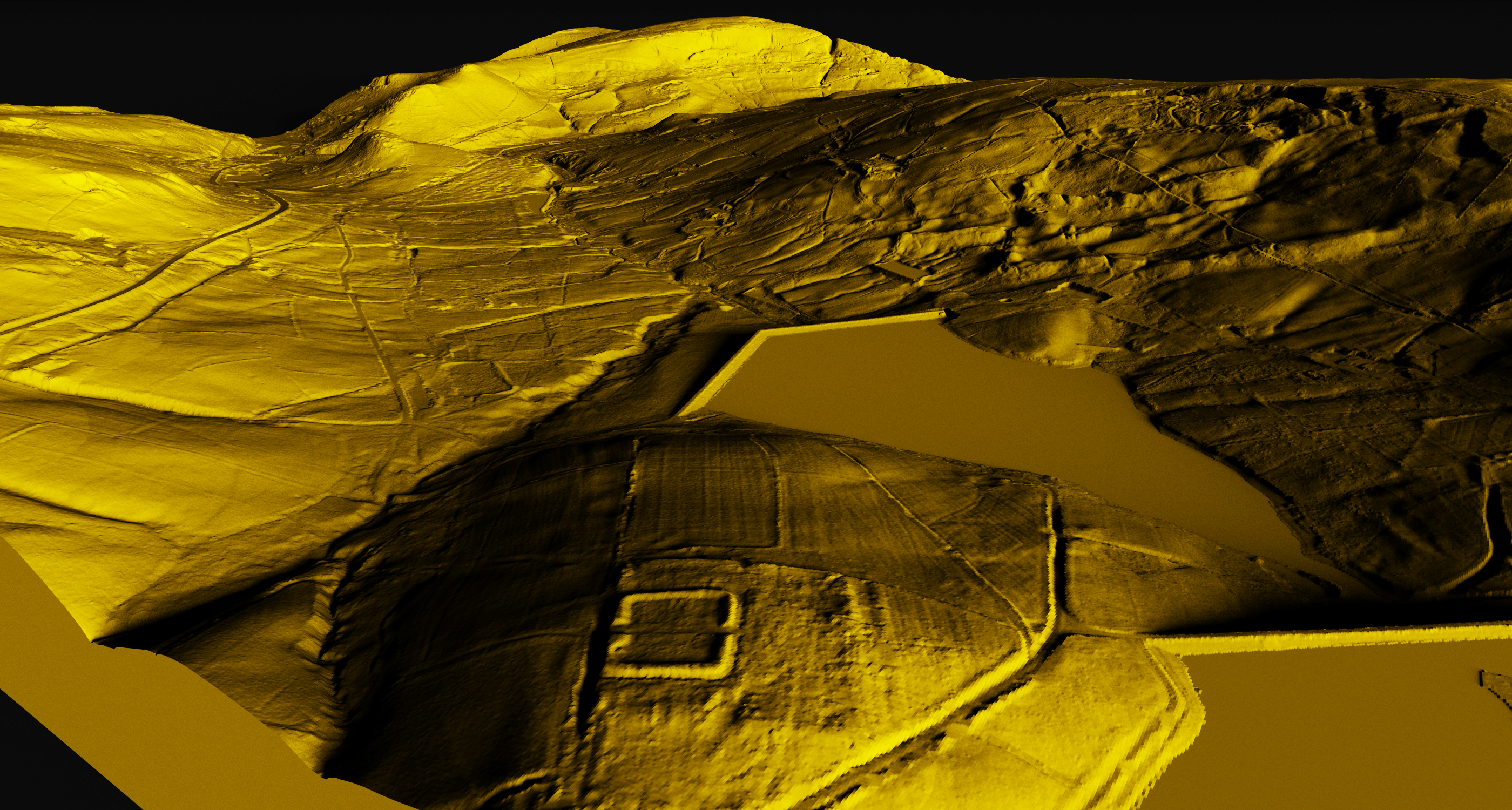

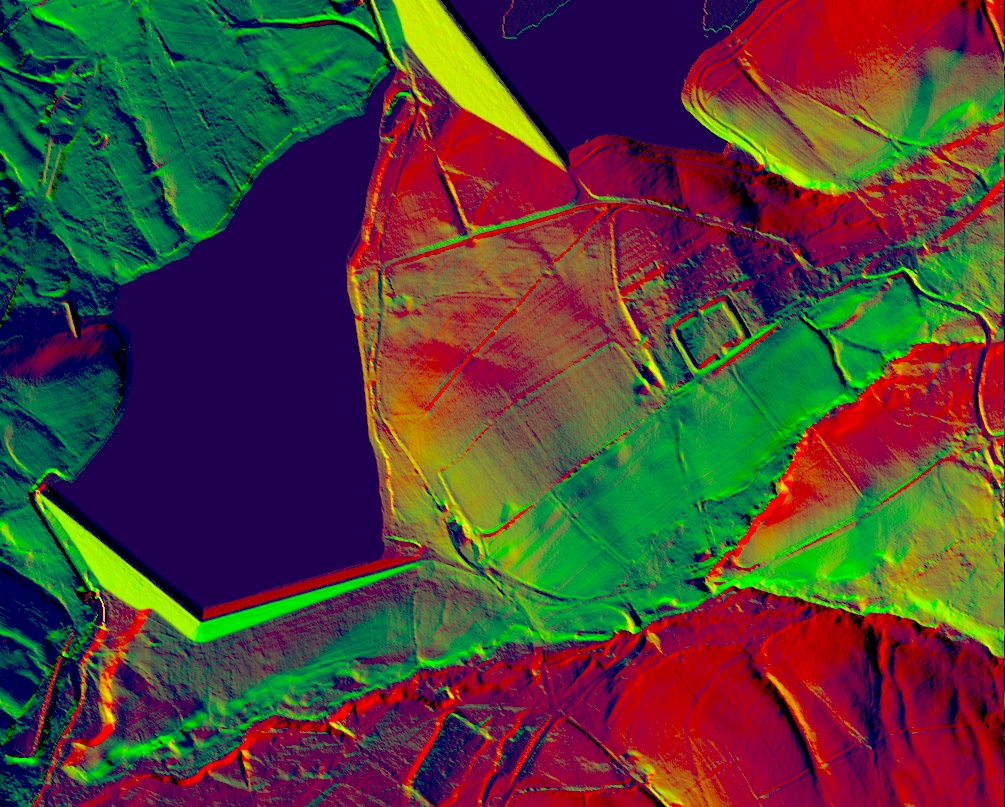

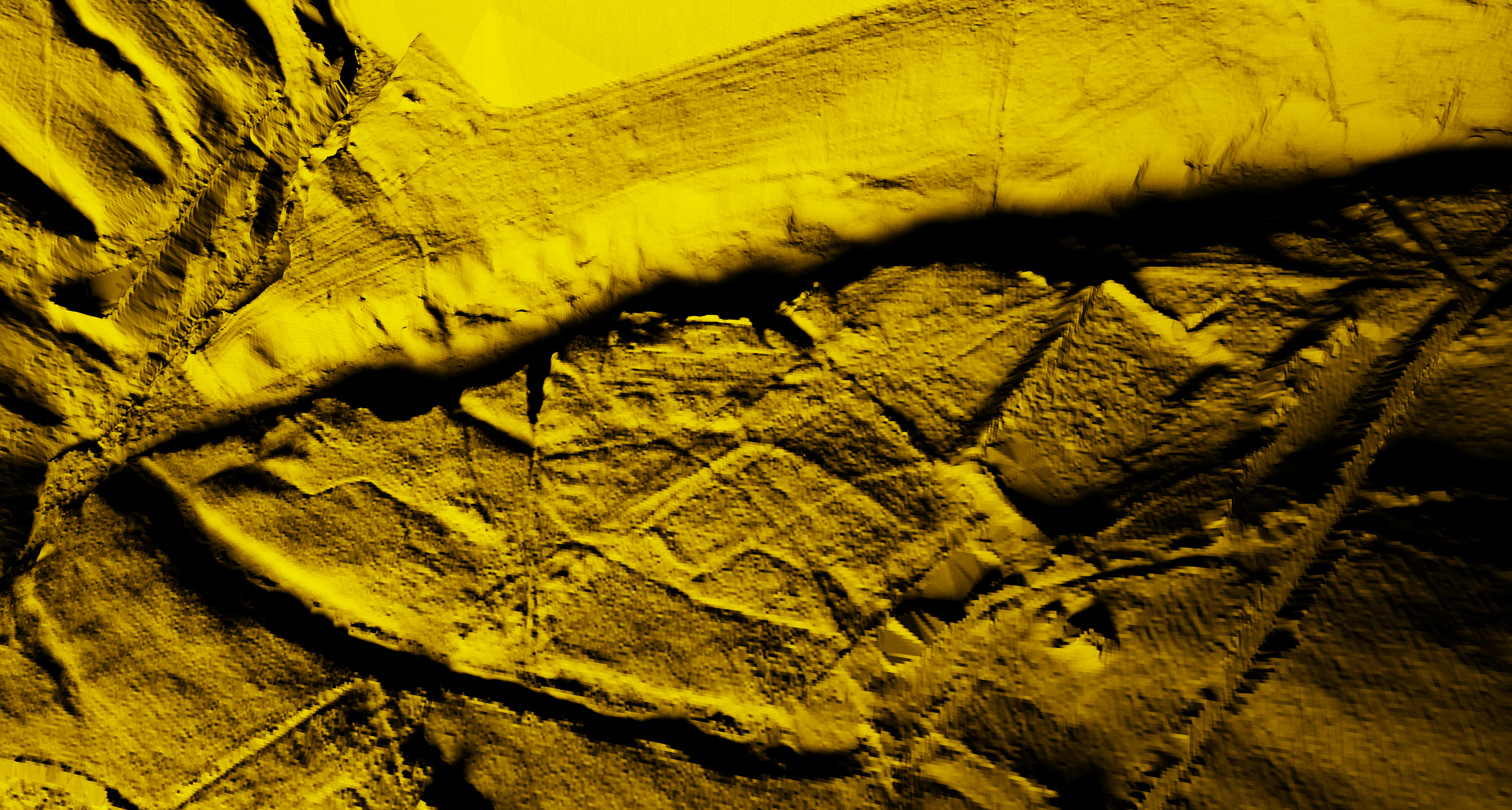

3D Lidar view of the fort area (interesting land slippage on the right)





3D Lidar view of the fort area

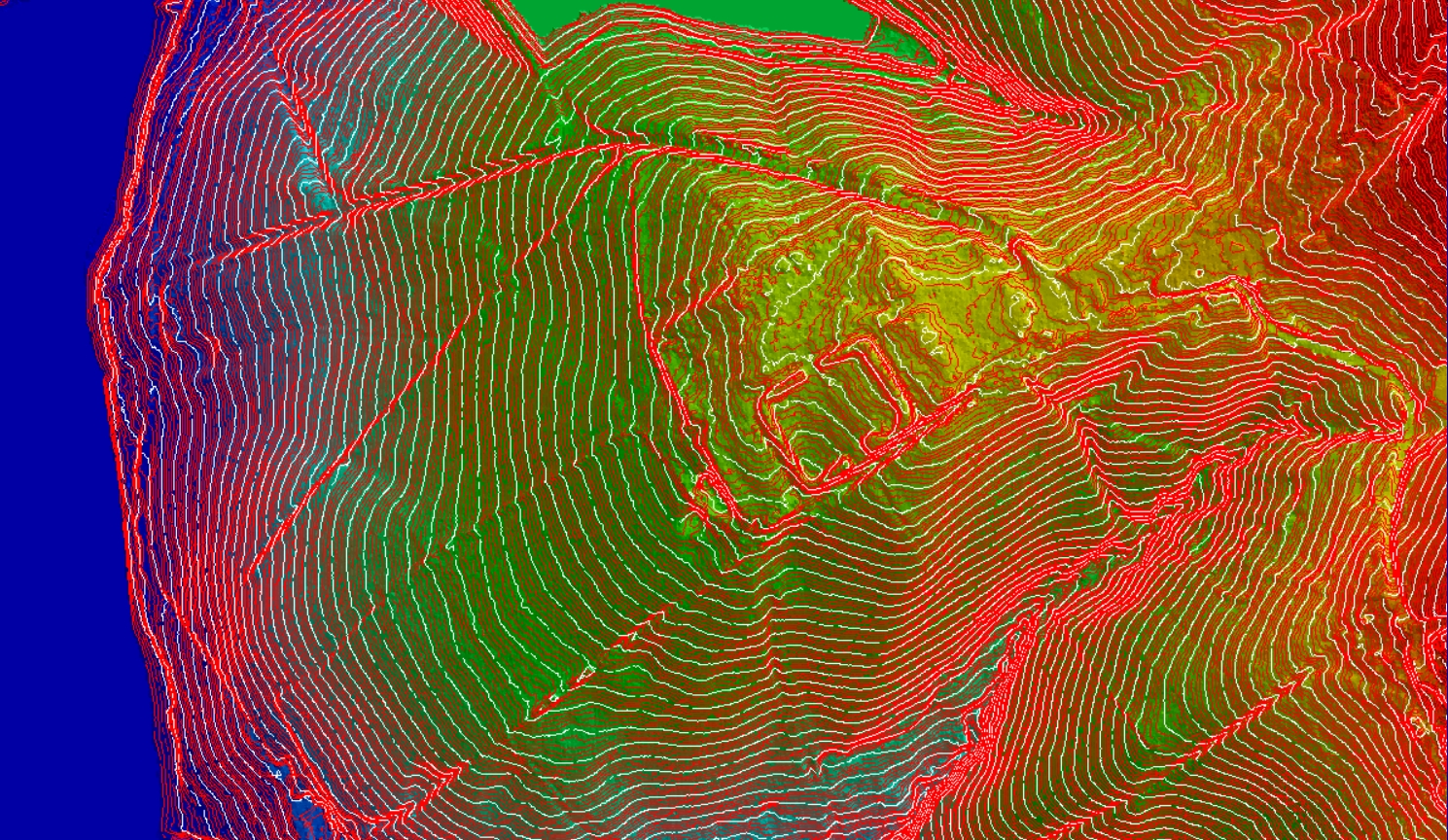

Castleshaw Fort 20cm contours



Lidar derived 20cm contour map of the Forts area.





Waters Clough Monastic site.



3D Lidar view Waters Clough area (with 5x vertical exaggeration,
the 'vast chasm' crossing the image is the Waters Clough brook)







Images/Data processing by Phil Barrett, Data (GeoTiffs) from the Environment Agency Geomatics group
Data available under the Open Government licence v3.0
